Application
A getter possesses the unique ability to absorb and eliminate gases and moisture, excluding inert gases. Leveraging this property, getters are employed in high-vacuum environments following mechanical vacuum processes facilitated by vacuum pumps to eliminate unwanted gases. Moreover, getters are utilized to refine specific gas types to ultra-high purity levels, as they have the capability to absorb and remove various impurities. Powderial excels in producing highly effective and long-lasting getters that selectively eliminate specific impurities among diverse contaminants.
•

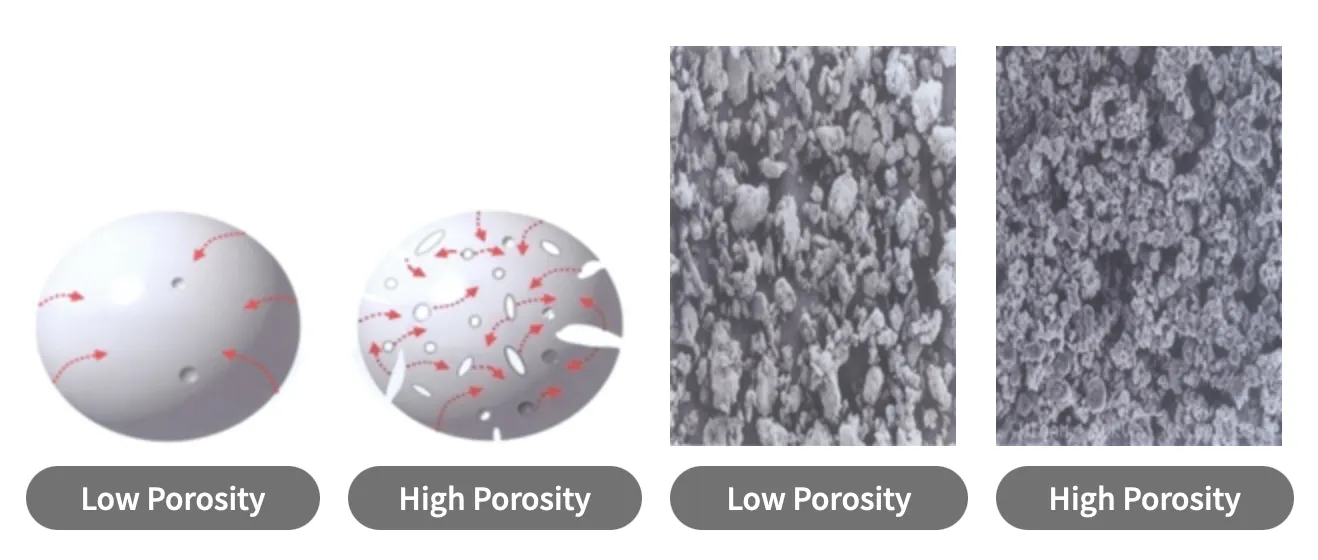

High porosity of Getter particle
•
Using high purity material which made by our own technology.
•
Customizing finished product and raw materials for customer’s usage and special needs.
•
High Vacuum Getter
Achieve airtight conditions and high vacuum within containers or chambers. Ideal for multi-layer vacuum glass applications.
•
Vacuum Pair Glass Getter
Maintain long-lasting high vacuum between glass pairs with a specific distance, ensuring optimal performance.
•
Ultra-High Purity Gas Purification Getter
Purify inert gases (Ar, He, Ne, Xe, Kr, Rn) and H2/N2 gases for applications requiring ultra-high purity. Also suitable for vacuum insulation panels.
•
Getter for Vacuum Insulation Panels (VIP)
Create a vacuum inside panels to dramatically reduce energy consumption by minimizing heat transfer. Our VIP getters efficiently remove gases and moisture, ensuring a maintained high vacuum state.
Delivery Times
Delivery times are available upon request.
Deliverable Forms
Getter for Gas Purifier
Model | Application | Activate Temp. | Type | Size | Capa. |
SGP 501 | Inert Gas Purification | 650 ± 50℃ (2 hours) | Pill | 6.0 x 3.0t | 0.85kg/1Nm3 |
SGP 502 | Hydrogen Gas Purification | 650 ± 50℃ (2 hours) | Pill | 6.0 x 3.0t | 2kg/1Nm3 |
SGP 503 | Nitrogen Gas Purification | 650 ± 50℃ (2 hours) | Pill | 6.0 x 3.0t | 0.85kg/1Nm3 |
Getter for High Vacuum
Model | Application | Activate Temp. | Type |
SGP 30L | Vacuum Facility Lamp Vacuum Bottle Getter Pump | 400 ± 50℃ (5min) | Pill |
SGH 30L | Vacuum Facility Lamp Vacuum Bottle Getter Pump | 400 ± 50℃ (5min) | Holder(STS) |
SGP 30H | Vacuum Facility Lamp Vacuum Bottle Getter Pump | 500 ± 50℃ (5min) | Pill |
SGH 30H | Vacuum Facility Lamp Vacuum Bottle Getter Pump | 500 ± 50℃ (5min) | Holder(STS) |
Getter for Vacuum Insulation Panel
Model | Application | Activate Temp. | Type | Capa. |
SGV - C | Vacuum Insulation Panel | Room Temp. | Case | Ø30 x 7t, 5.5t |
SGV - P | Vacuum Insulation Panel | Room Temp. | Pouch | W70 x L70 |
We are able to supply products beyond our standard specifications and offer customization options upon inquiry.
